FLEXLINE600
FLEXLINE600
CNC DOUBLE SIDE BORING, GLUING AND DOWEL INSERTION MACHINE
FLEXLINE600 - Description:
FLEXLINE600 is a CNC double side through feed drilling gluing and dowel insertion machine which combines maximum level of flexibility in panel processing with simultaneously high capacity. Average of four to seven panels per minute depending on dowel pattern and batch size. The machine configuration allows the use in line with other machines or as standing alone workstation with or without loading and unloading. The main feature of this machine is the possibility of processing different work pieces with no manual set up maintaining a very high working speed.
- Increased efficiency with high speed of working cycle and flexibility;
- possibility to integrate the machine in a production line or work as stand-alone;
- CNC drilling and dowel insertion with perfect accuracy eliminating any possible mistake;
- precise positioning of dowels for easy and high quality assembling;
- ideal solution for just in time production or large batches thanks to the minimum cycle time;
- possibility to process narrow pieces as well as standard cabinet components;
- no manual setup time;
- heavy duty frame and design for maximum accuracy and reliability.

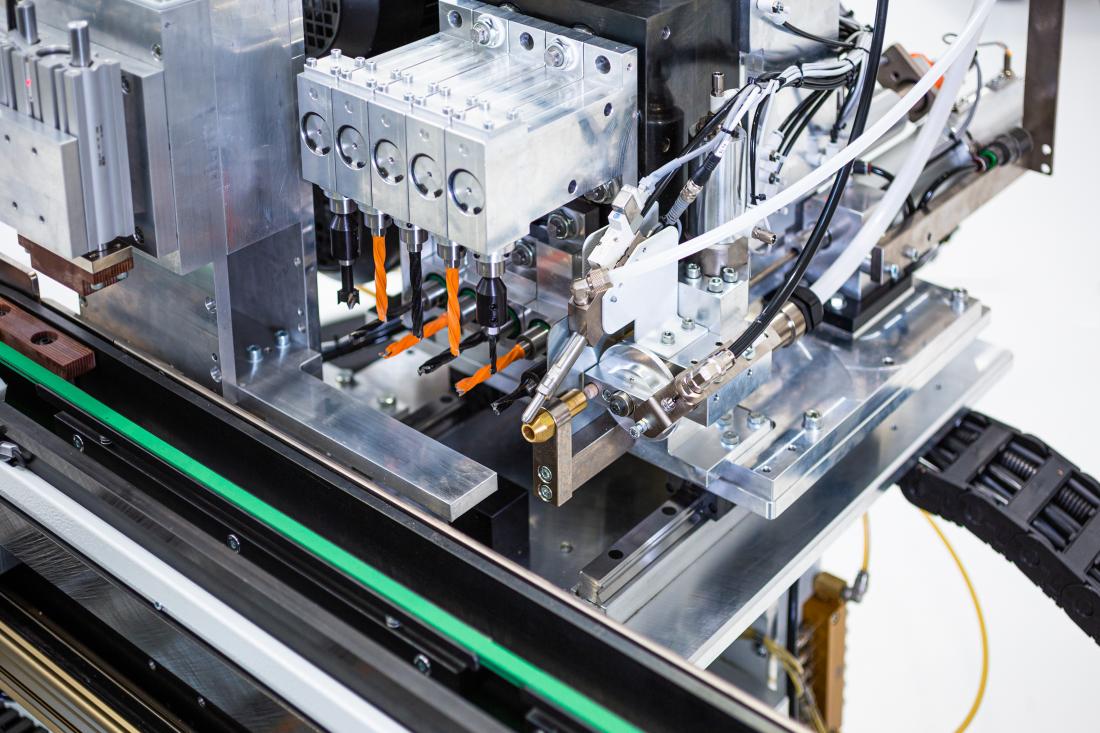

- Left and right operating head each equipped with single horizontal drill and dowel;
- high speed positioning of the operating units and shoulder for maximum flexibility;
- option vertical drilling unit for face drilling close to the edge;
- option hopper feeder for automatic loading of narrow pieces;
- sure shot revolver system to guarantee the fastest cycle time, average one second, and extreme reliability;
- powerful and user friendly PC based numerical control;
- heavy duty steel frame for maximum rigidity;
- barcoding and network ready.
- Panel length 210 - 1200
- Panel width 50-600
- Panel thickness 16-40 mm
- Installed power - 10 Kw
- Compressed air (bar) - 7
- Dust extraction hood -60 mm x 2 (+ 80 mm x 2 with vertical drilling)
- Total weight - 2000 Kg
