HORIZONTAL AND VERTICAL BORE, GLUE, DOWEL INSERTION. HORIZONTAL AND VERTICAL ROUTING UNIT.
CUBE RT - Description:

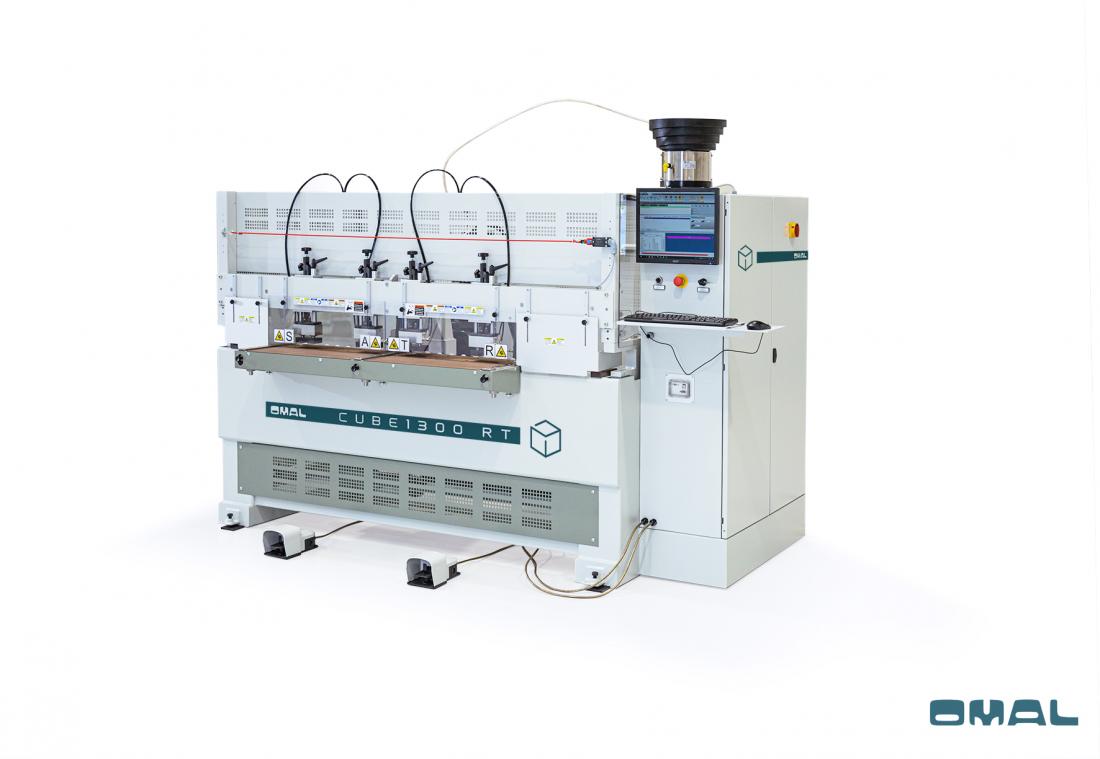

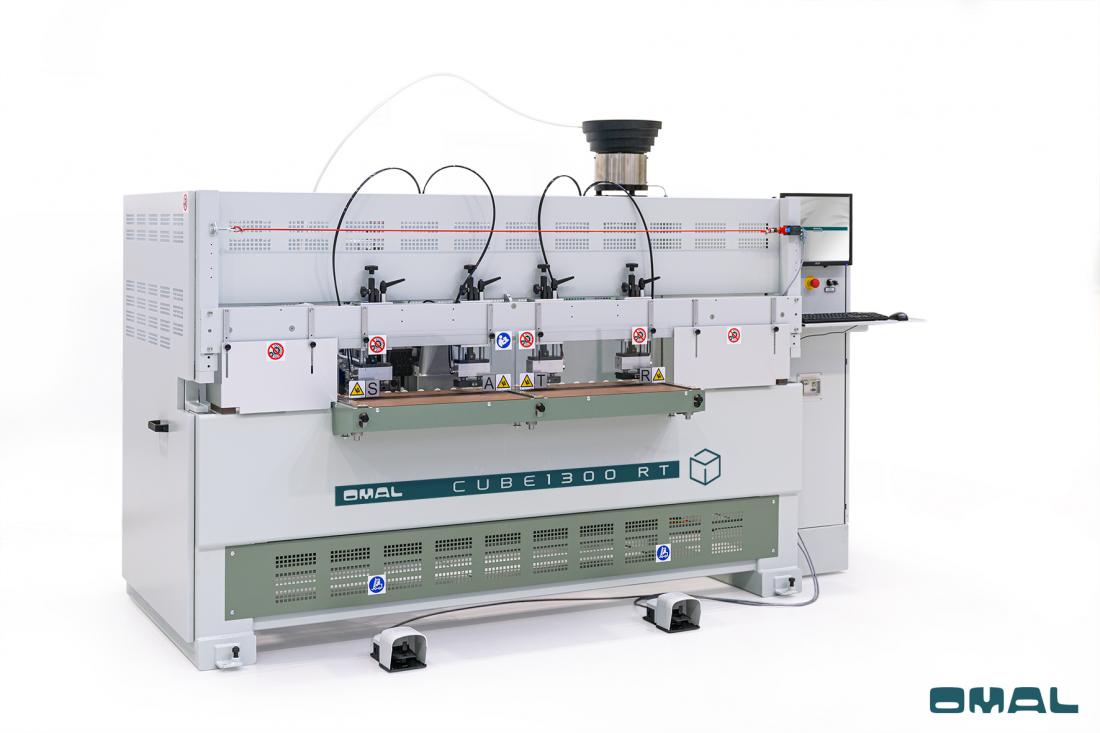

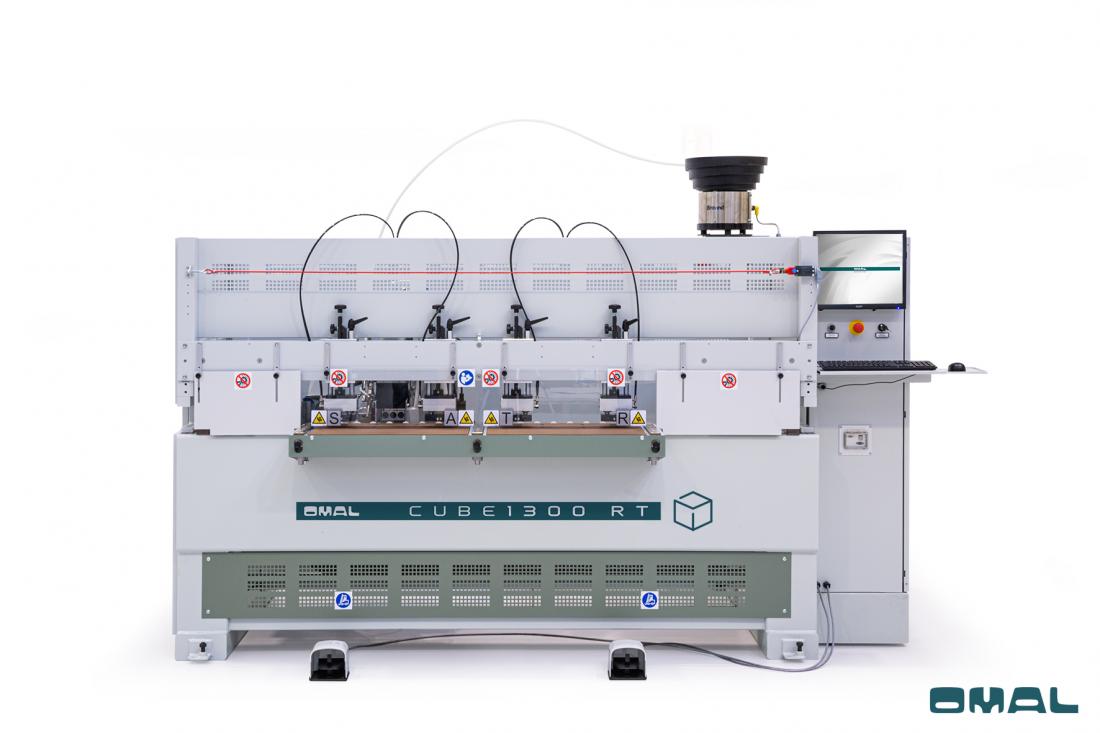

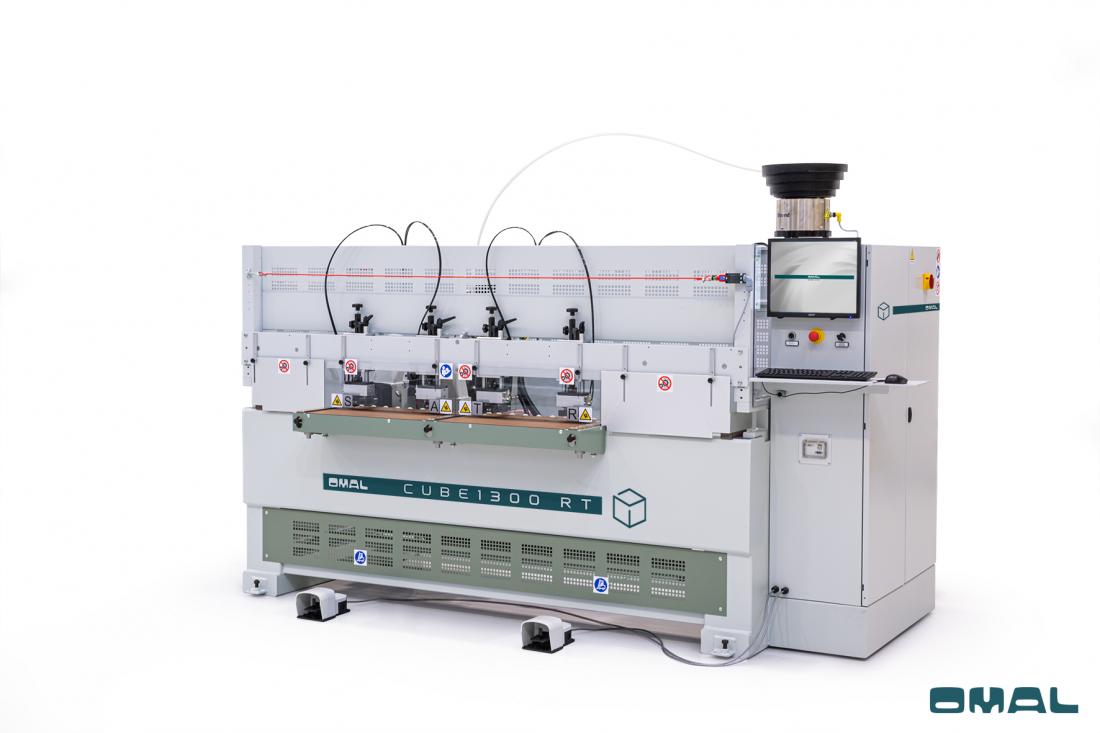

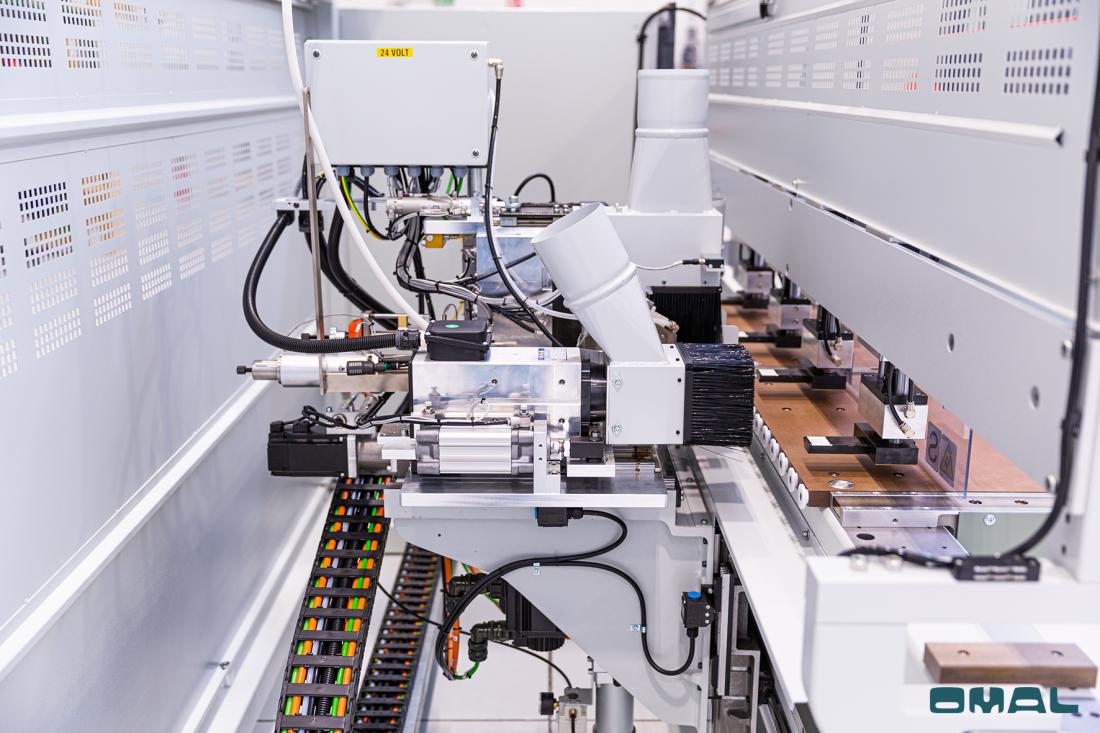

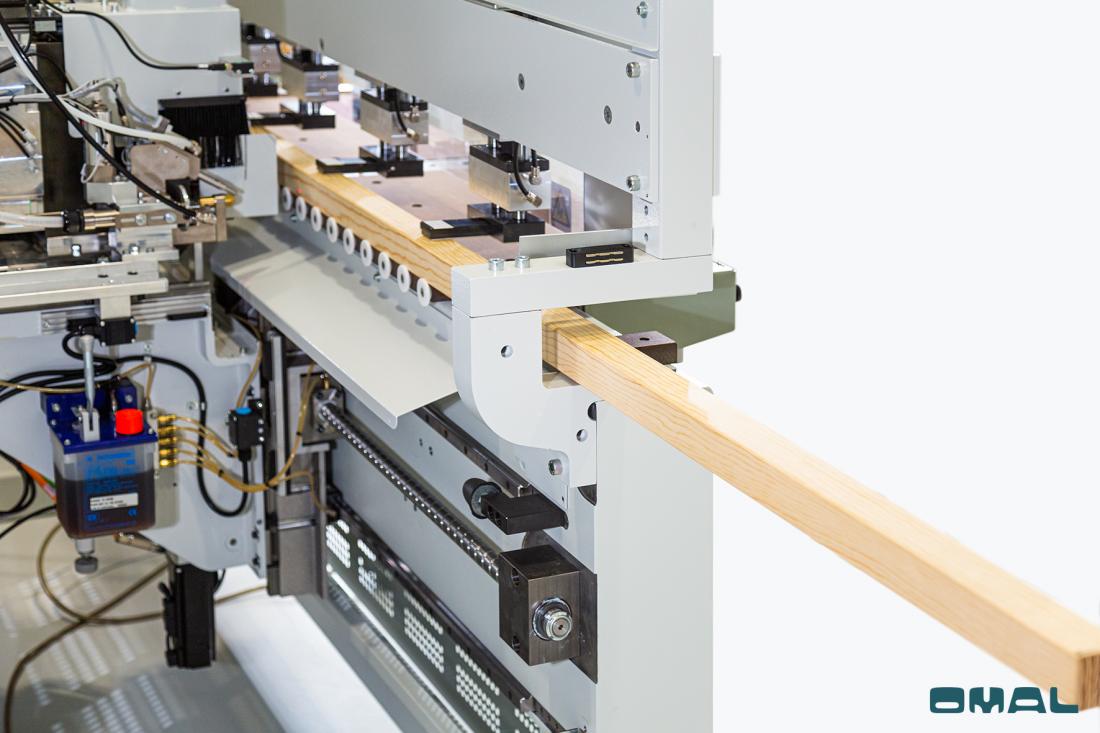

The CUBE RT is a 3 AXIS Numerical Controlled machine for vertical and horizontal drilling, gluing and dowel insertion. The machine is equipped also with one horizontal routing unit for milling the edge or grooving. Option of Vertical router (CUBE RT2). Cube RT offers a Full PC interface with 1300 or 2500 mm useful working field divided in zones for pendulum processing, 4 references stops are standard. Insert Cube is a complete solution for assembly of furniture and cabinets. The standard machine includes 5 Vertical and 5 Horizontal drilling units, glue and dowel insertion, horizontal/vertical routing unit beside several different features which complete the configuration and offer the highest level of flexibility and efficiency.
- Increased efficiency with high speed of working cycle and flexibility;
- Cnc drilling and dowel insertion with perfect accuracy eliminating any possible mistake;
- easiness of assembling;
- ideal solution for just in time production or large batches thanks to the minimum cycle time;
- zero setup time and possibility to work with different boring pattern in different fields;
- it is possible to concentrate different edge machining operations on the same single side machine.

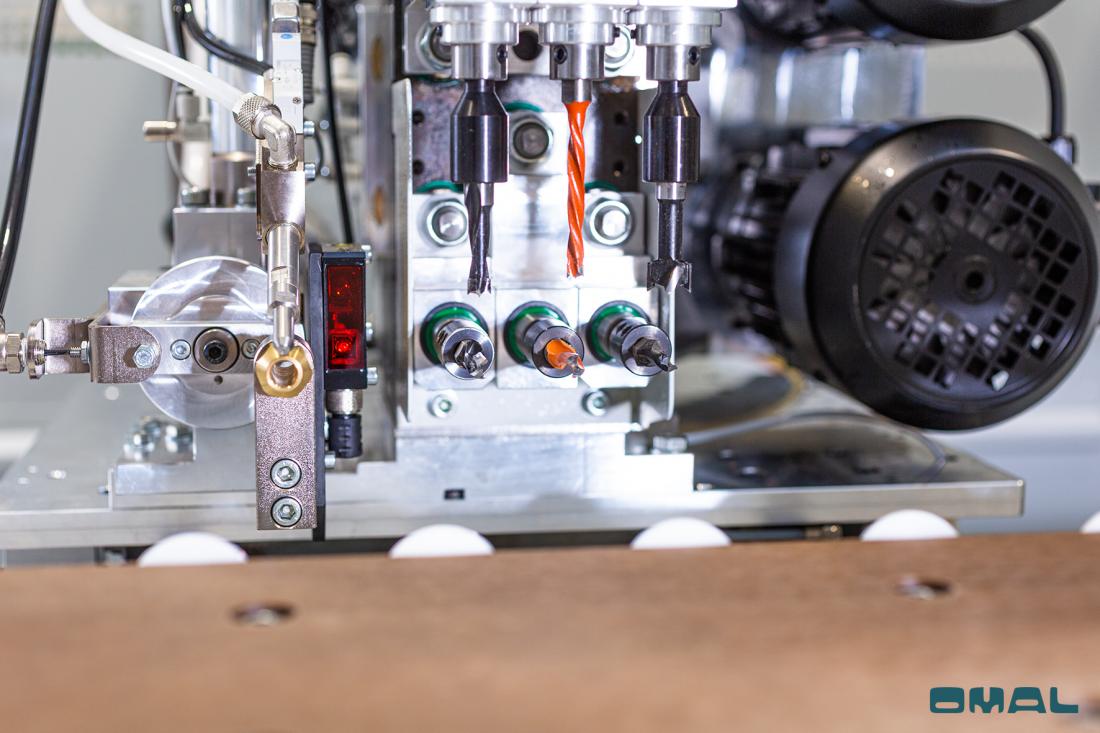

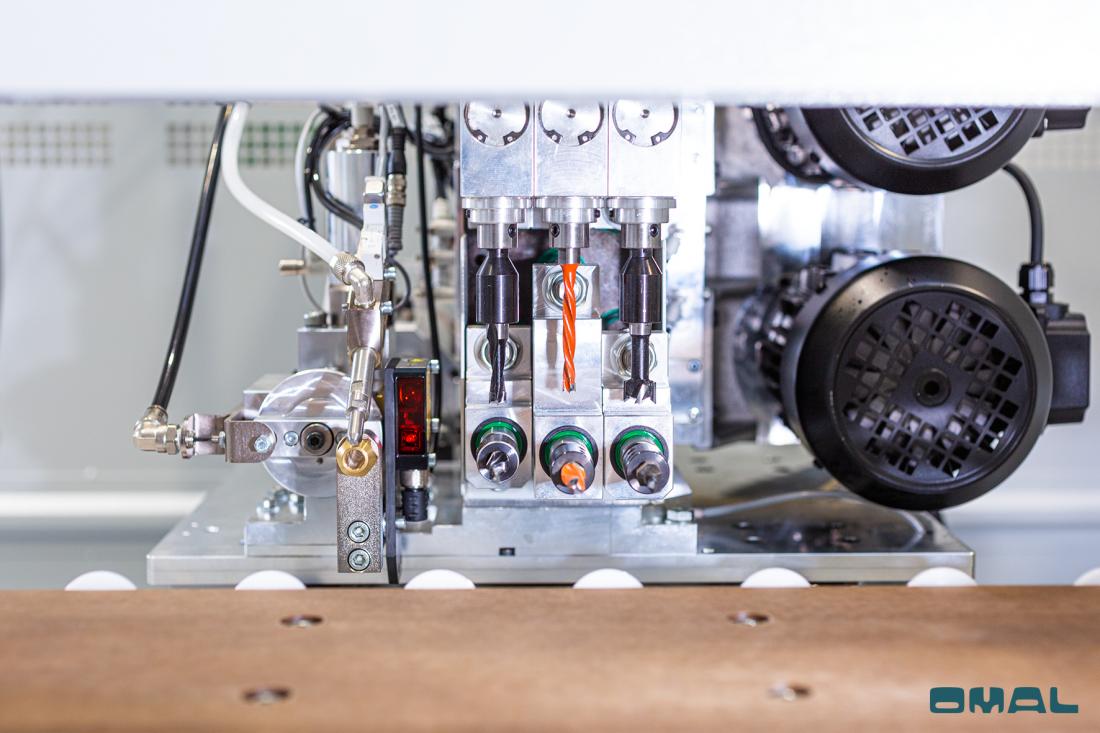

- Sure shot revolver system to guarantee the fastest cycle time (average one second) and extreme reliability;

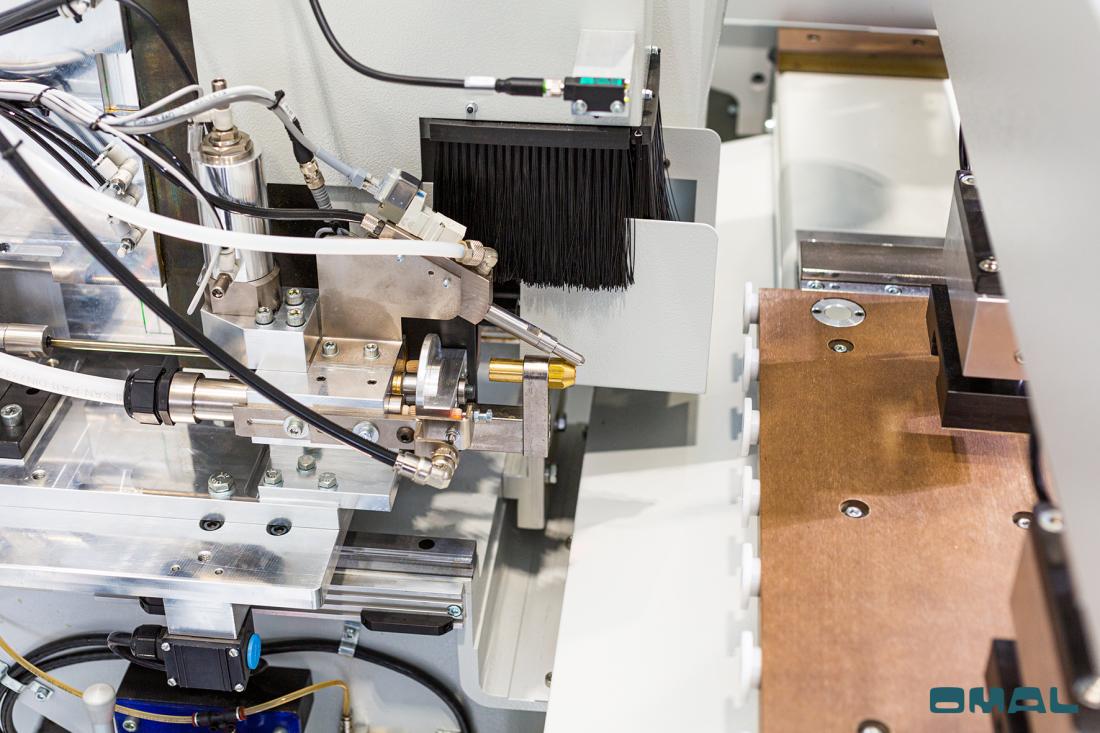

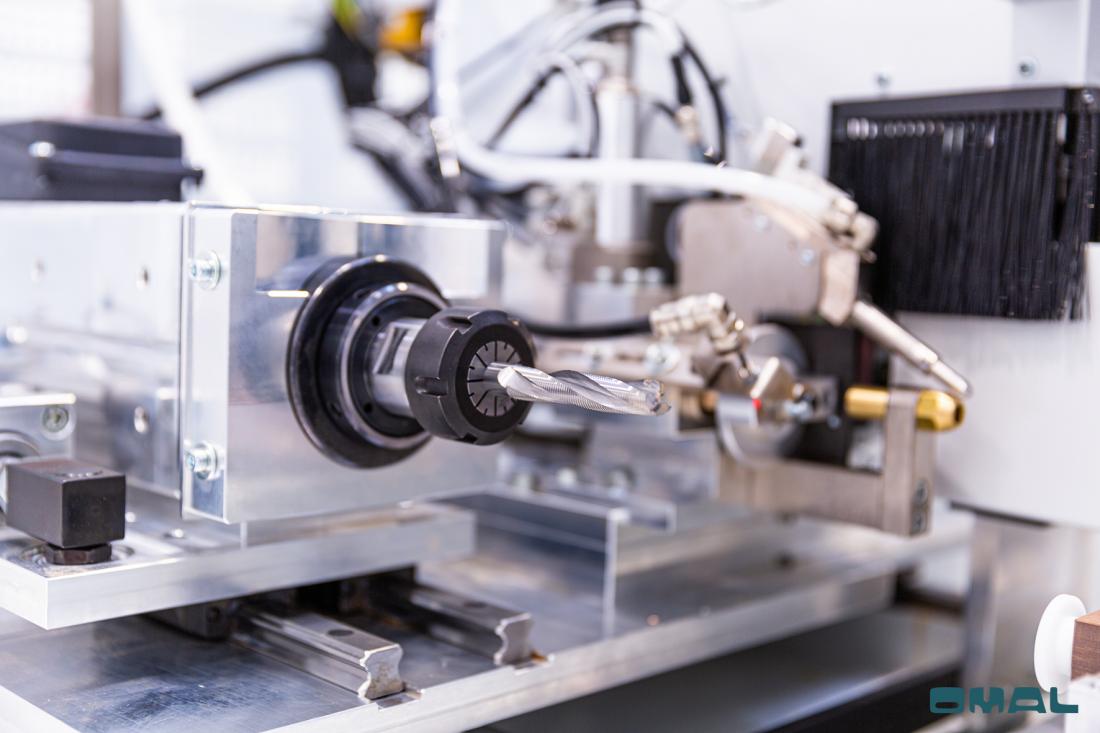

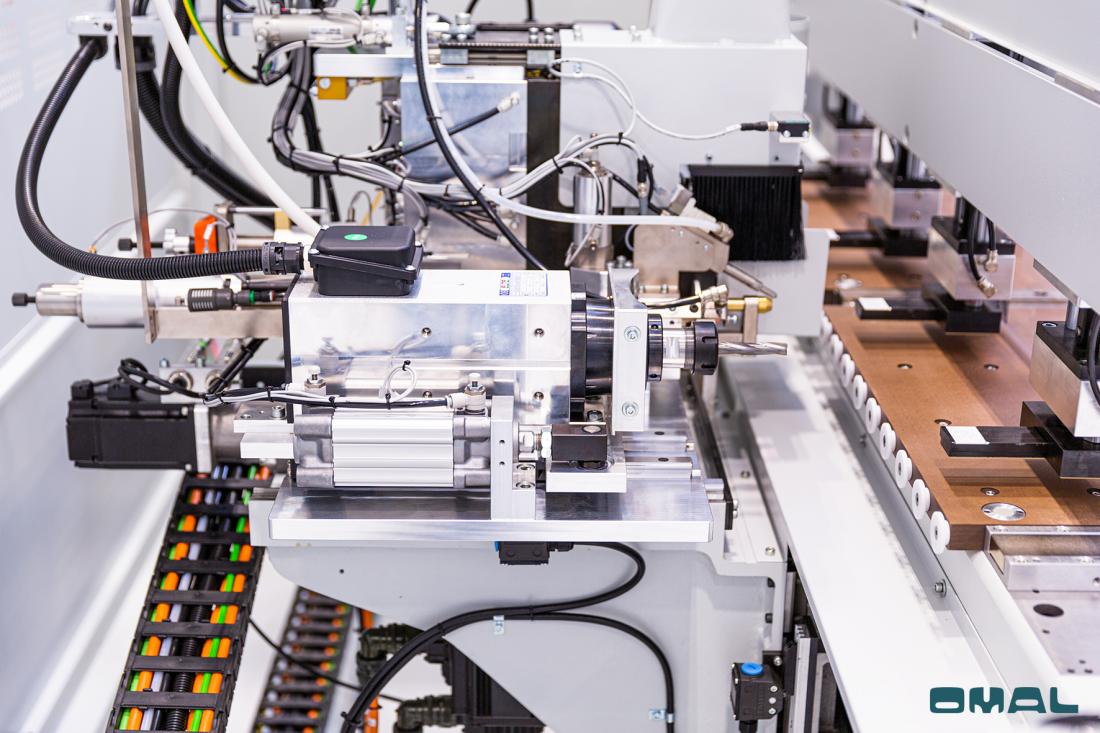

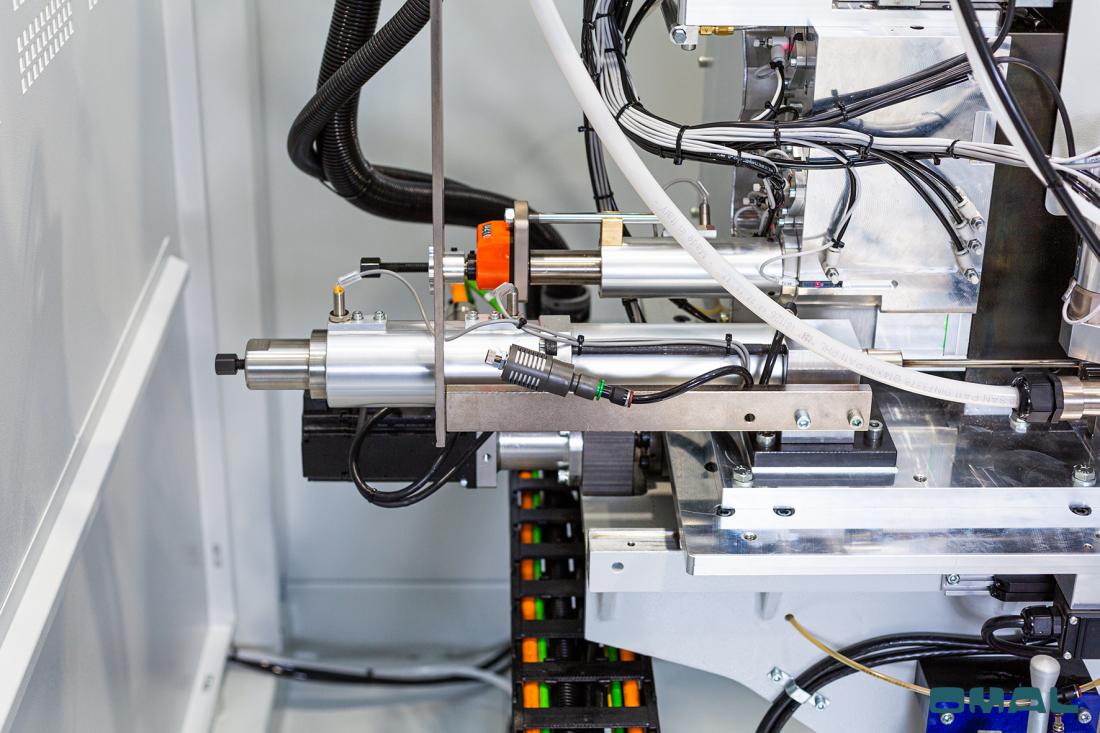

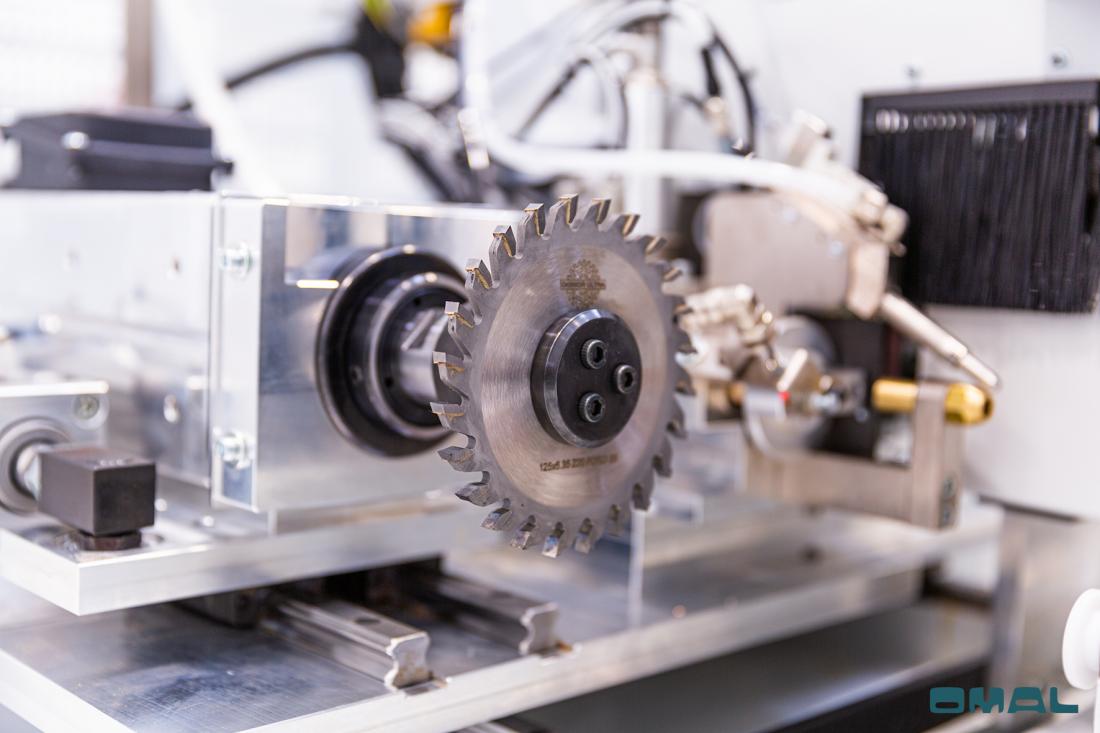

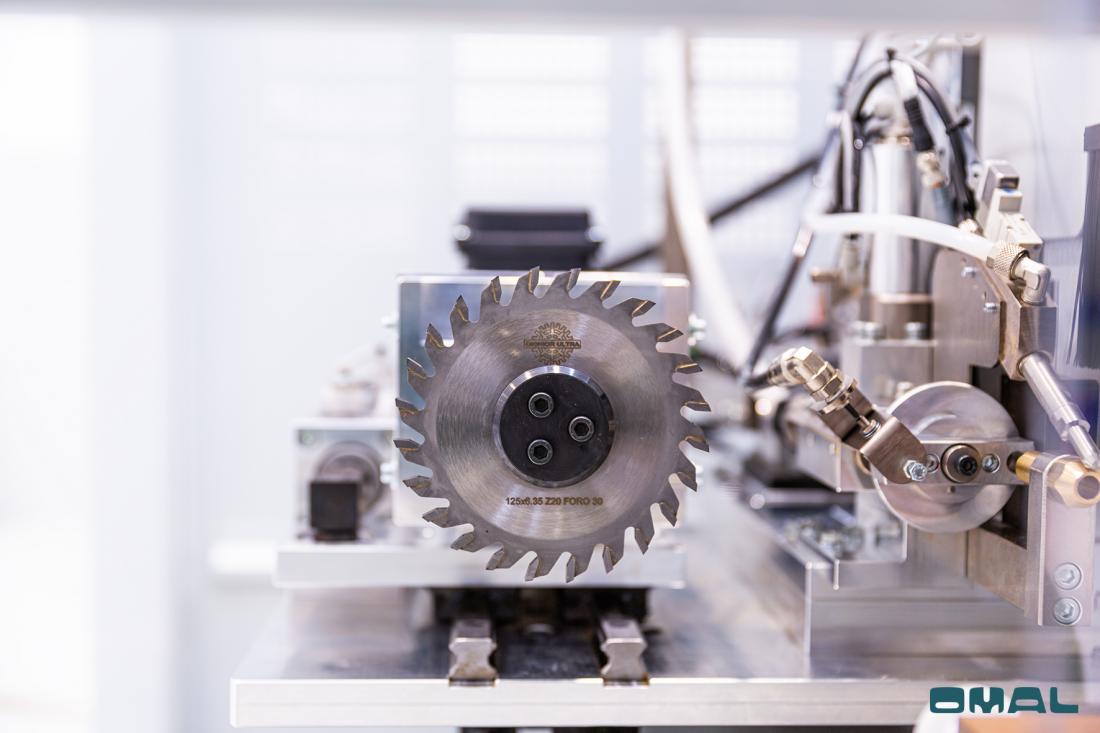

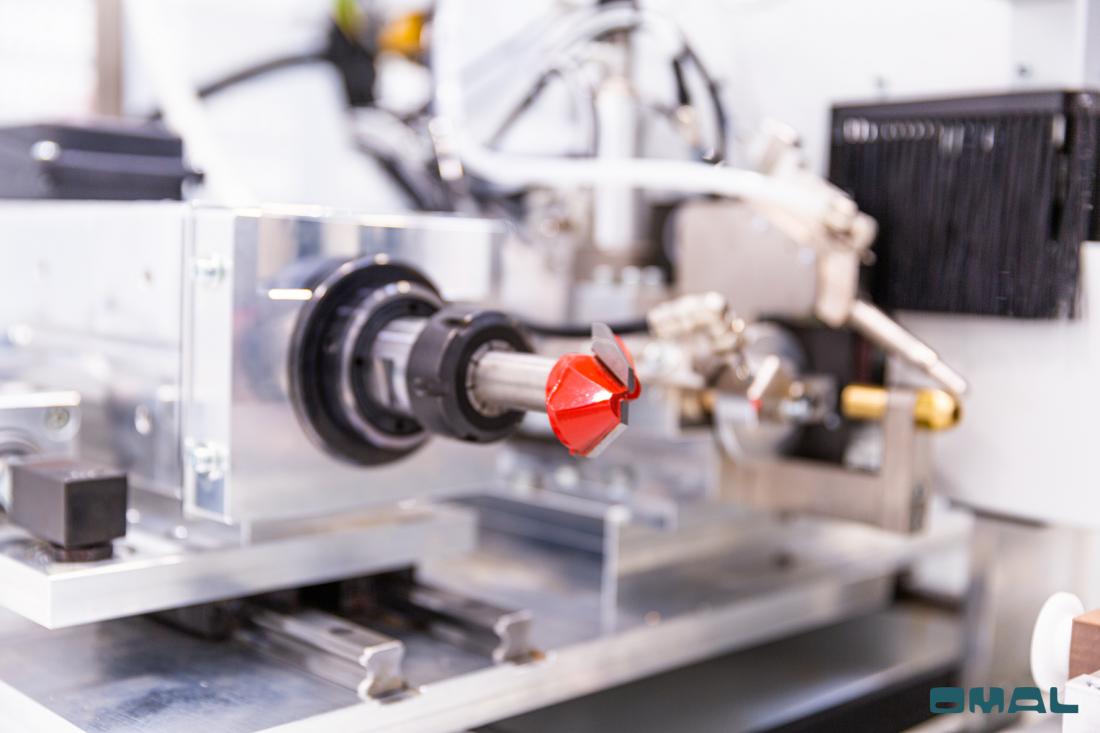

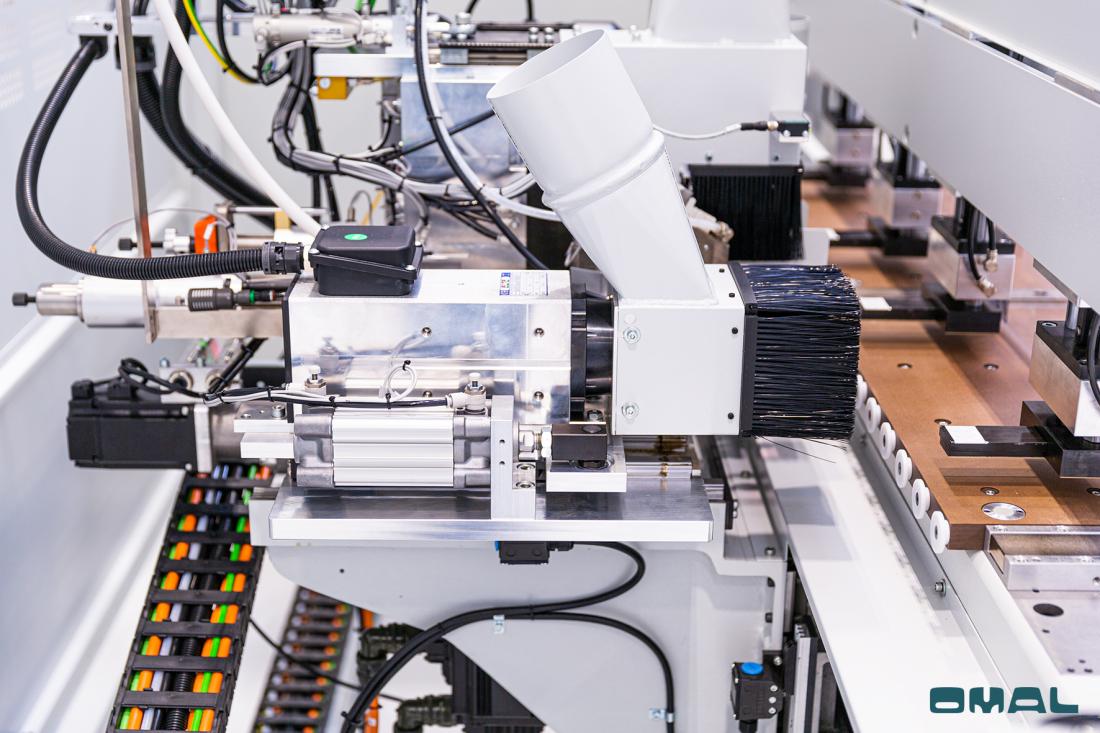

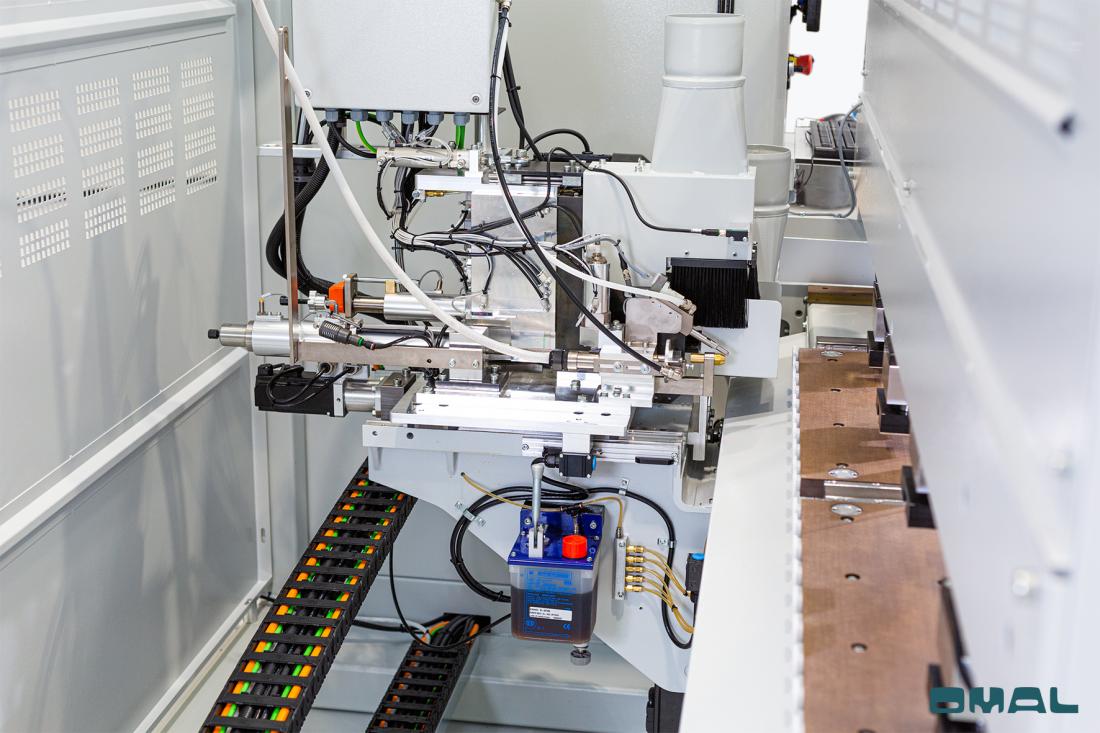

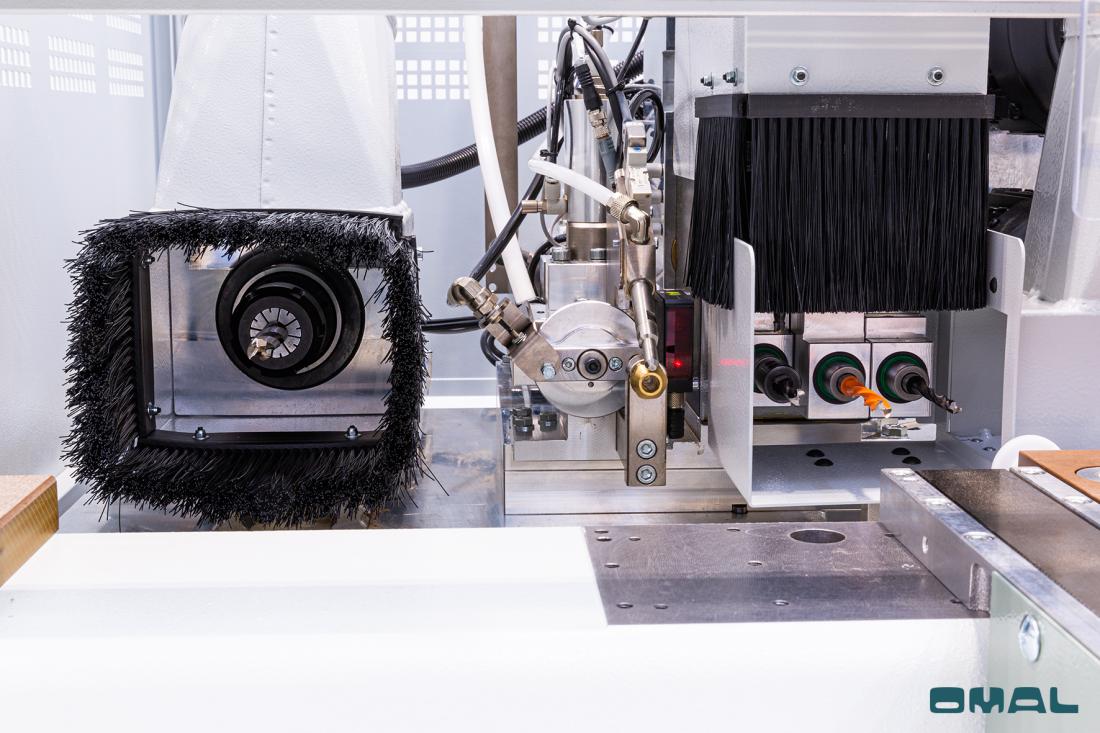

- 5,6 kw Horizontal routing unit (RT1);
- 5,6 kw Horizontal and Vertical routing units (RT2);
- sinking back stops to allow edge milling;
- laser for measuring the part and populate the program;

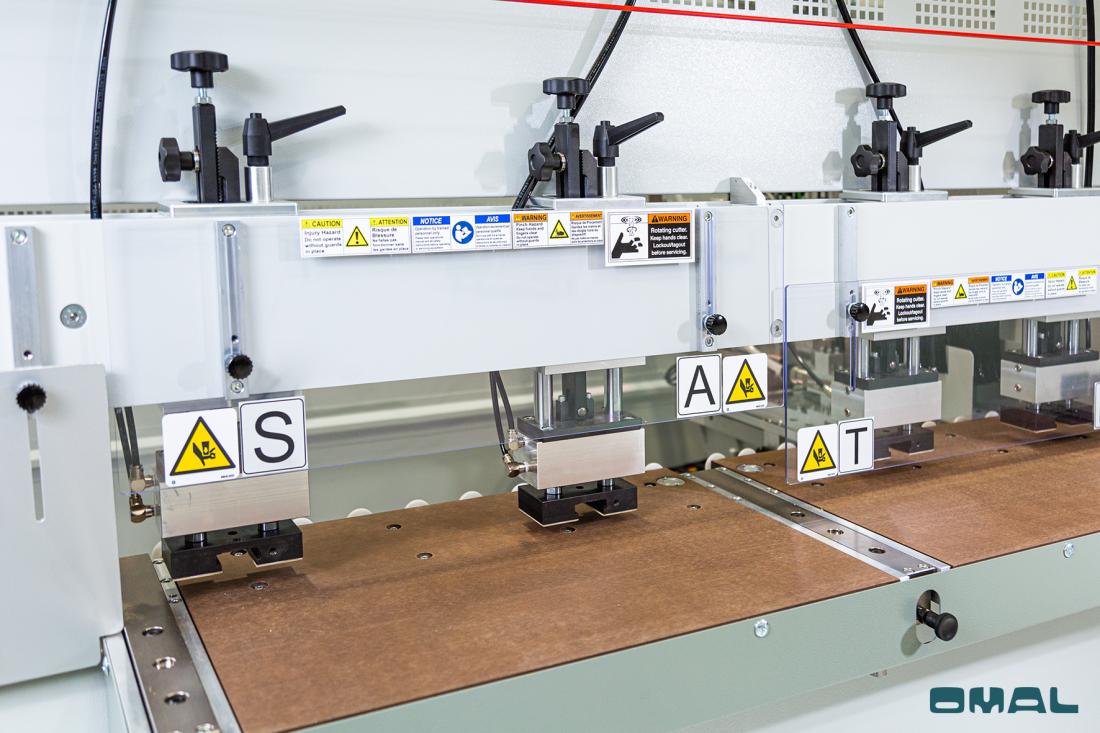

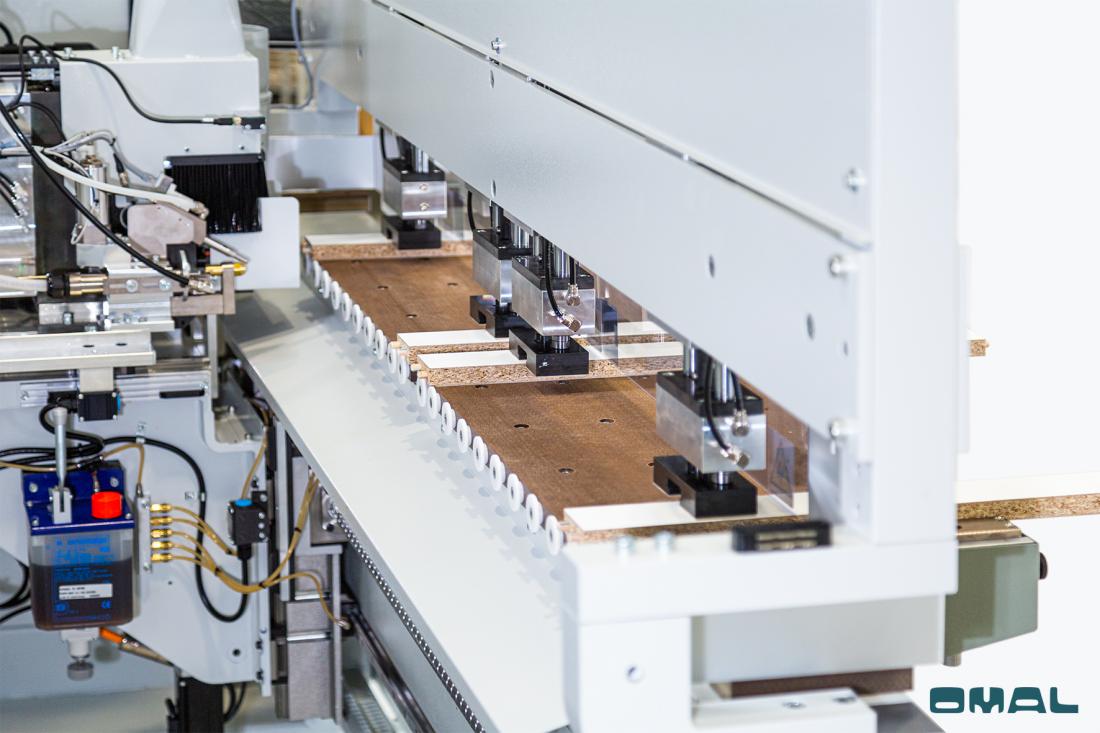

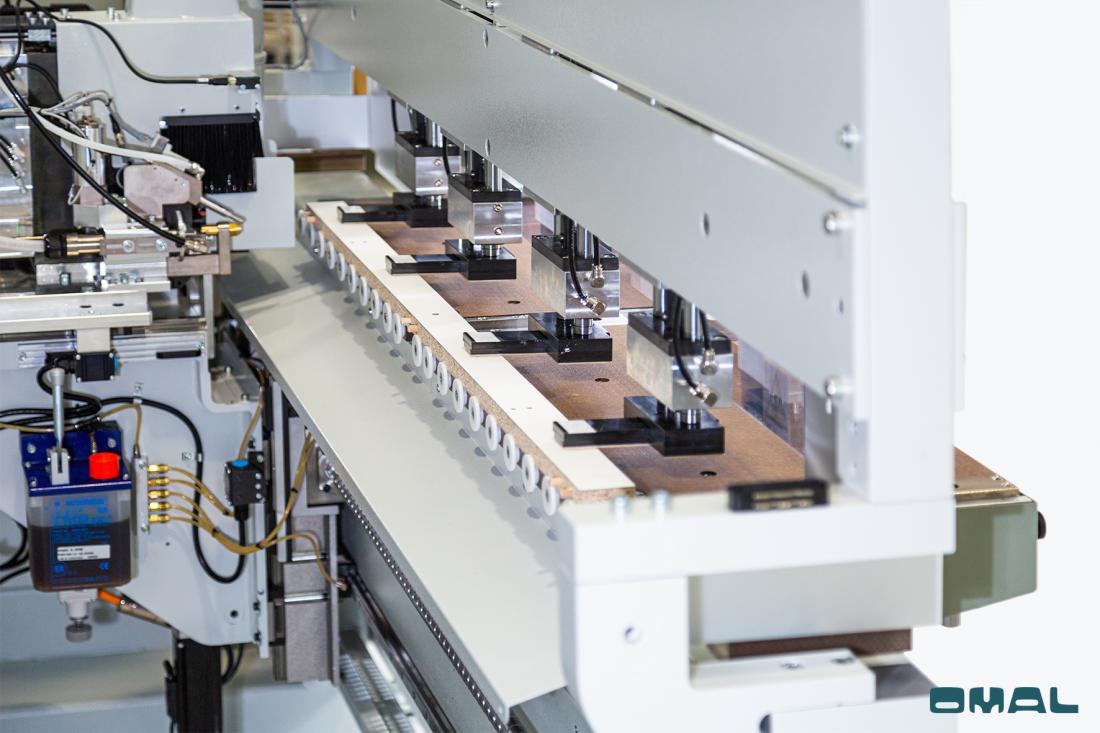

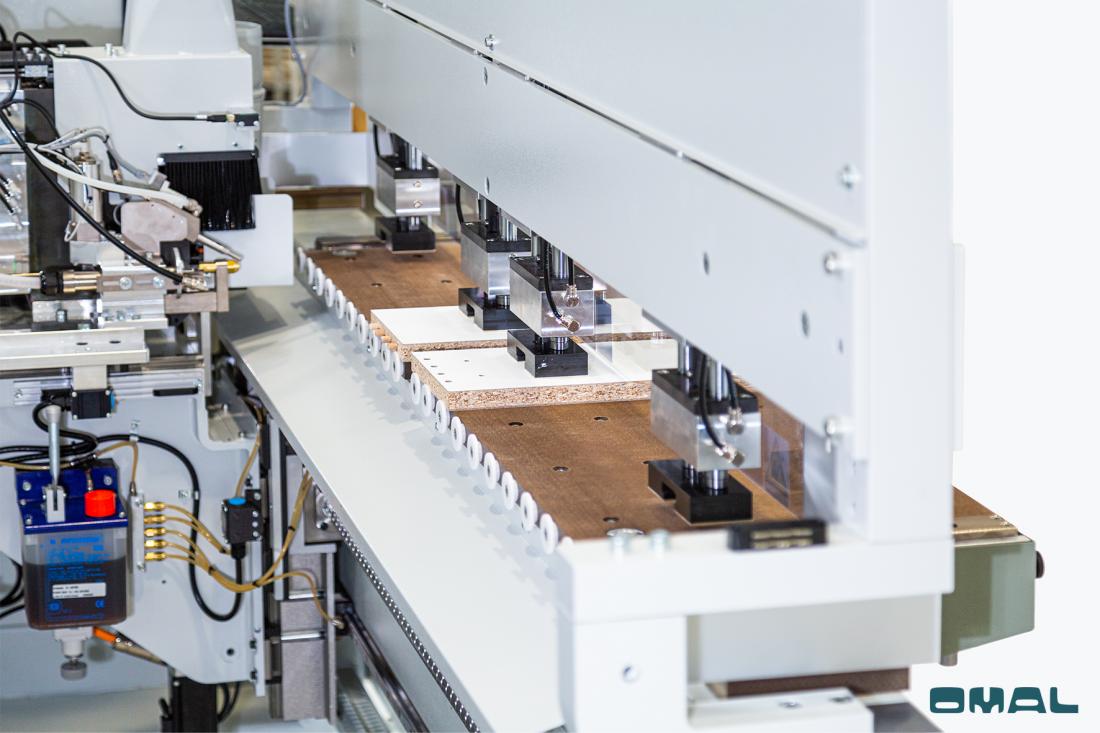

- heavy duty double piston clamps with Omal ‘easy positioning’ system;

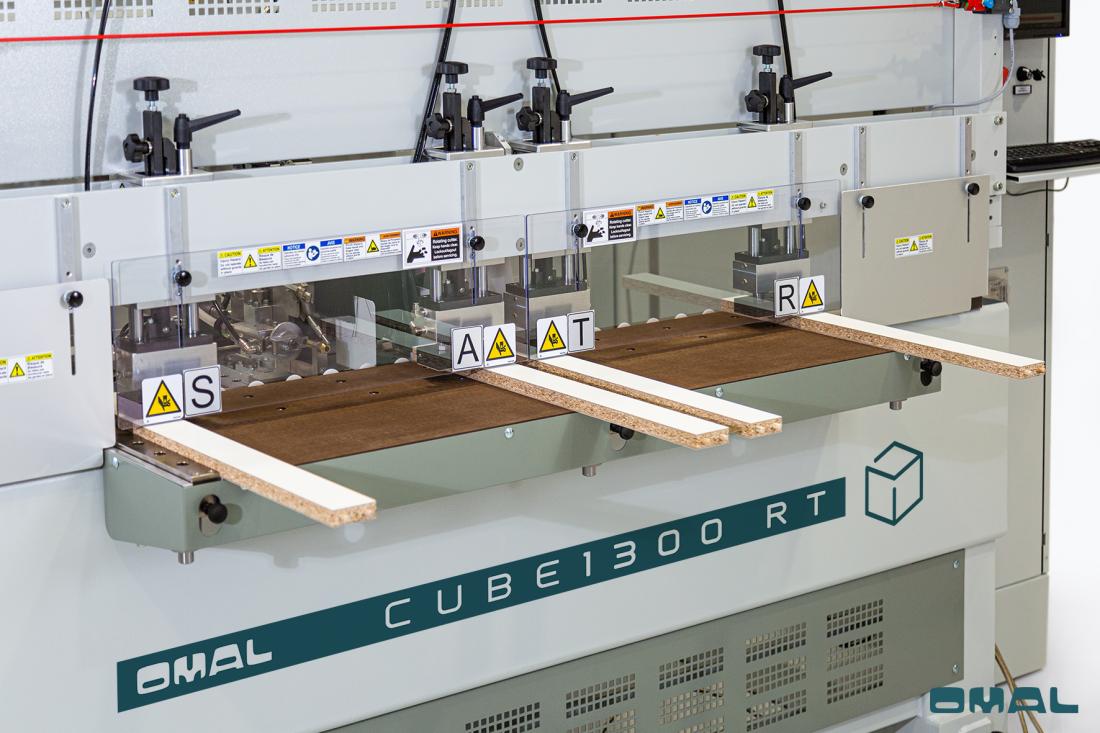

- clamps extension for narrow pieces and unique Omal anti-collision laser;
- auto-start (option);
- highly efficient dust extraction

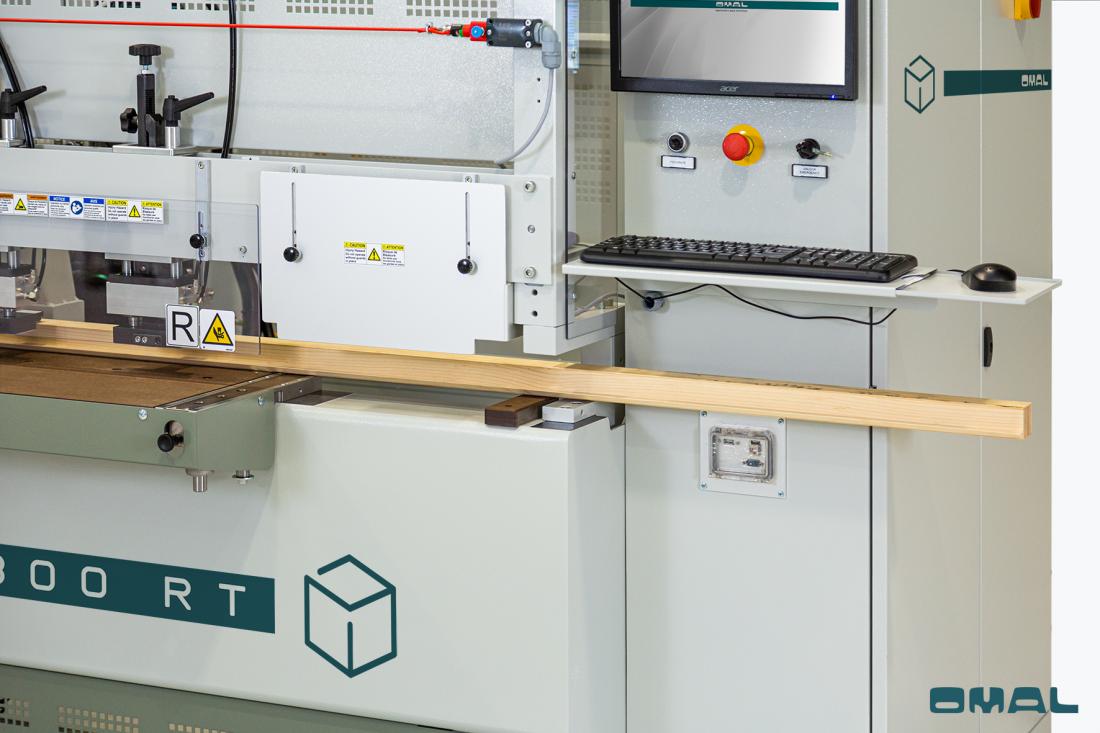

- powerful and user friendly Pc based Numerical Control;
- heavy duty steel frame for maximum rigidity;

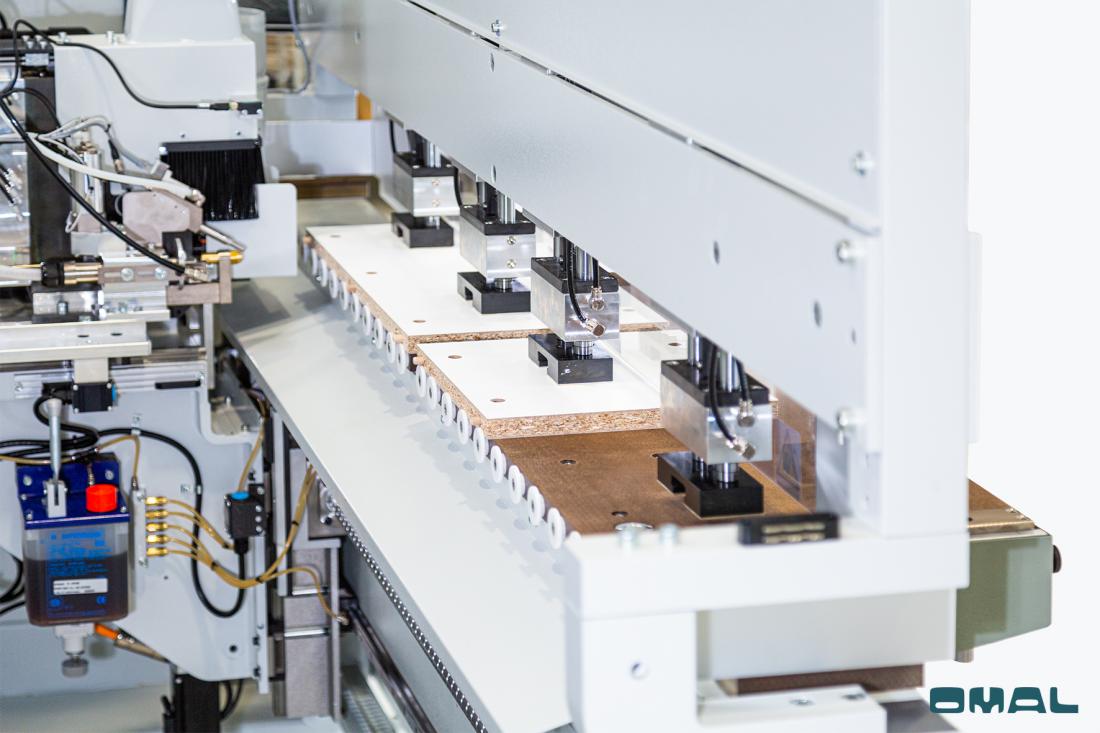

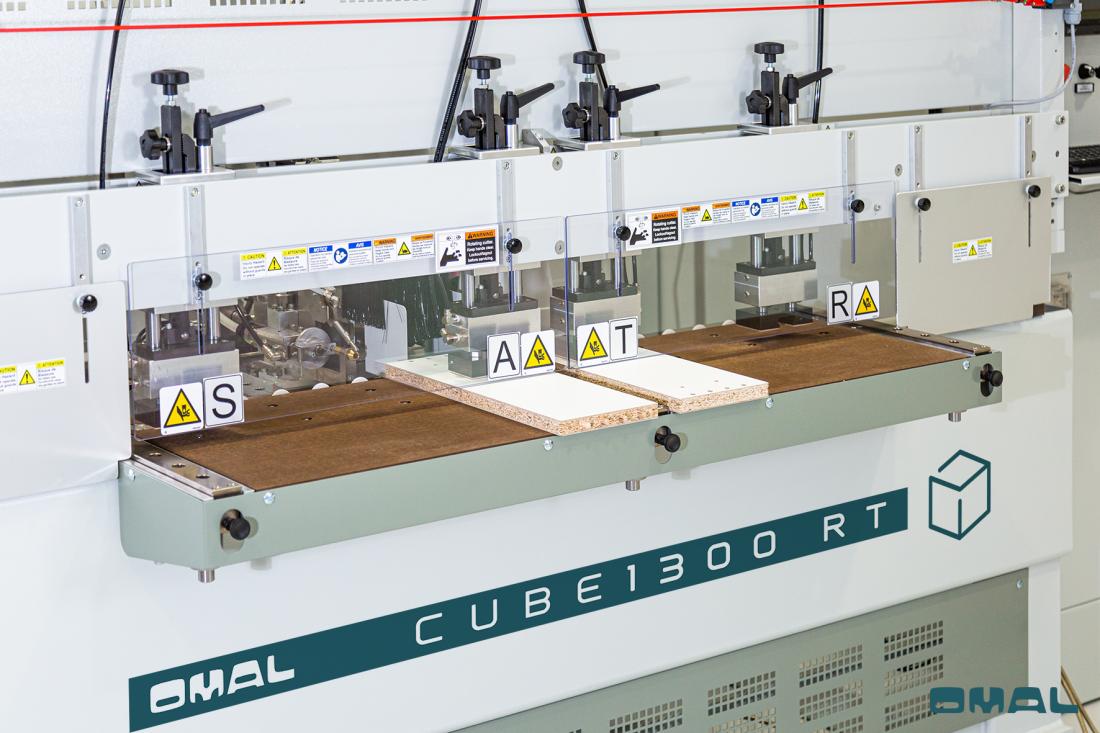

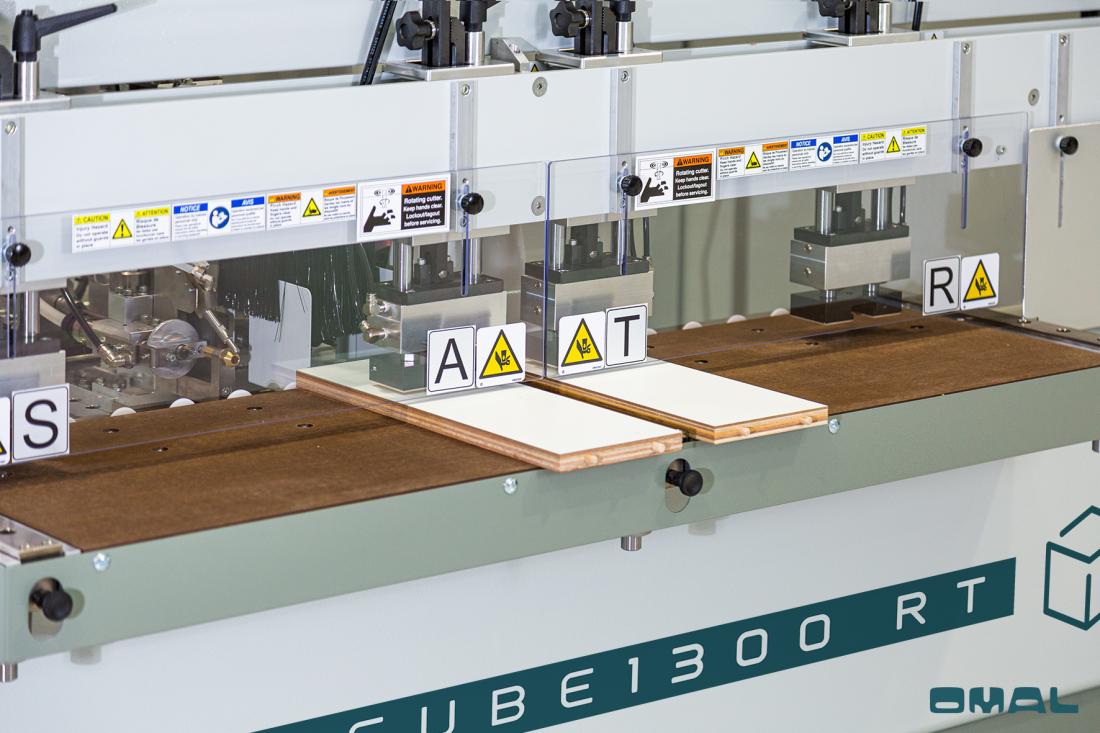

- large phenolic table with heavy duty clamps suitable also for delicate materials;
- barcoding and network ready
- option Omal Spotlight to position clamps, show machine status, right part and field to be loaded.
- Panel length 20 - 1300 / 2500 mm
- Panel width 40 - ∞
- Panel thickness 10-60 mm
- Installed power - 13 Kw
- Compressed air - min 7
- Dust extraction hood - 3 x 120 mm RT1 / 4 x 120 mm RT2
- Total weight - 1600 / 2200 Kg
