CUBE1300 / 2500
CUBE1300 / 2500
HORIZONTAL AND VERTICAL BORE, GLUE, DOWEL INSERTION
CUBE1300 / 2500 - Description:

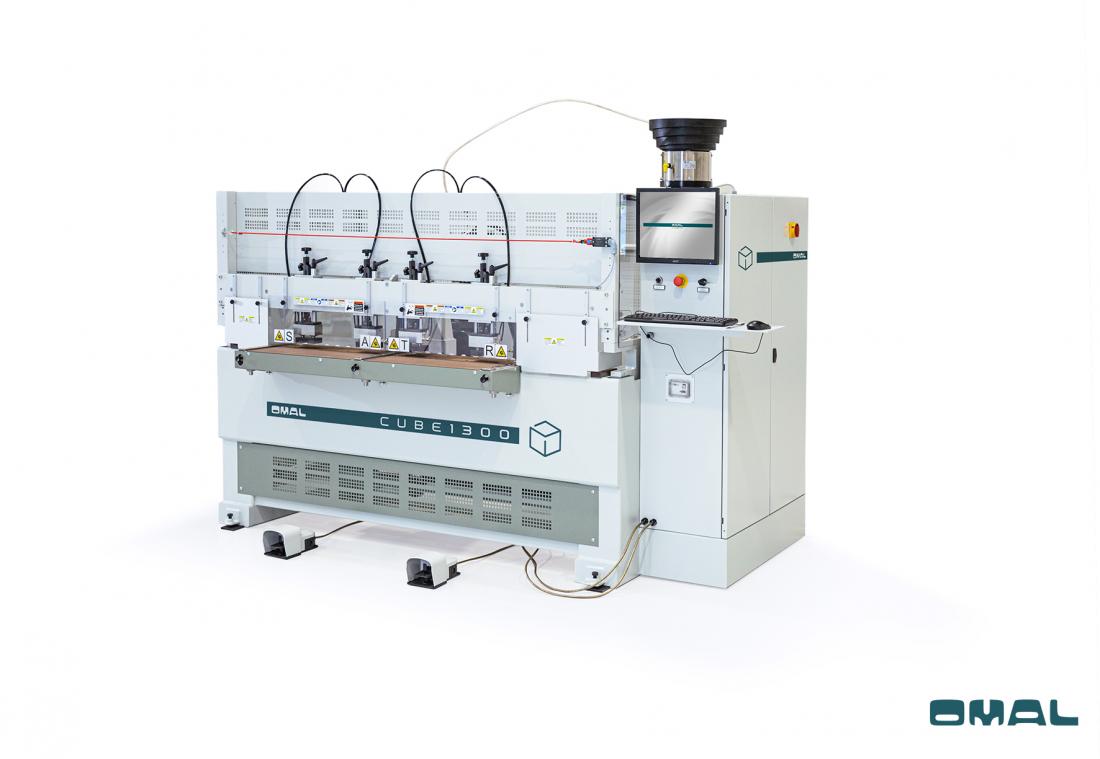

The INSERT CUBE is a 3 AXIS Numerical Controlled machine for vertical and horizontal drilling, gluing and dowel insertion. The machine offers a Full Pc interface with 1300 or 2500 mm useful working field divided in zones for pendulum processing, four references stops are standard. Insert Cube is a complete solution for assembly of furniture and cabinets. The standard machine includes 3 Vertical and 3 Horizontal drilling units, glue and dowel insertion beside several different features which complete the configuration and offers the highest level of flexibility and efficiency.
- Increased efficiency with high speed of working cycle and flexibility;
- Cnc drilling and dowel insertion with perfect accuracy eliminating any possible mistake;
- easiness of assembling;
- ideal solution for just in time production or large batches thanks to the minimum cycle time;
- zero setup time and possibility to work with different boring pattern in different fields;
- it is possible to concentrate different edge machining operations on the same single side machine.

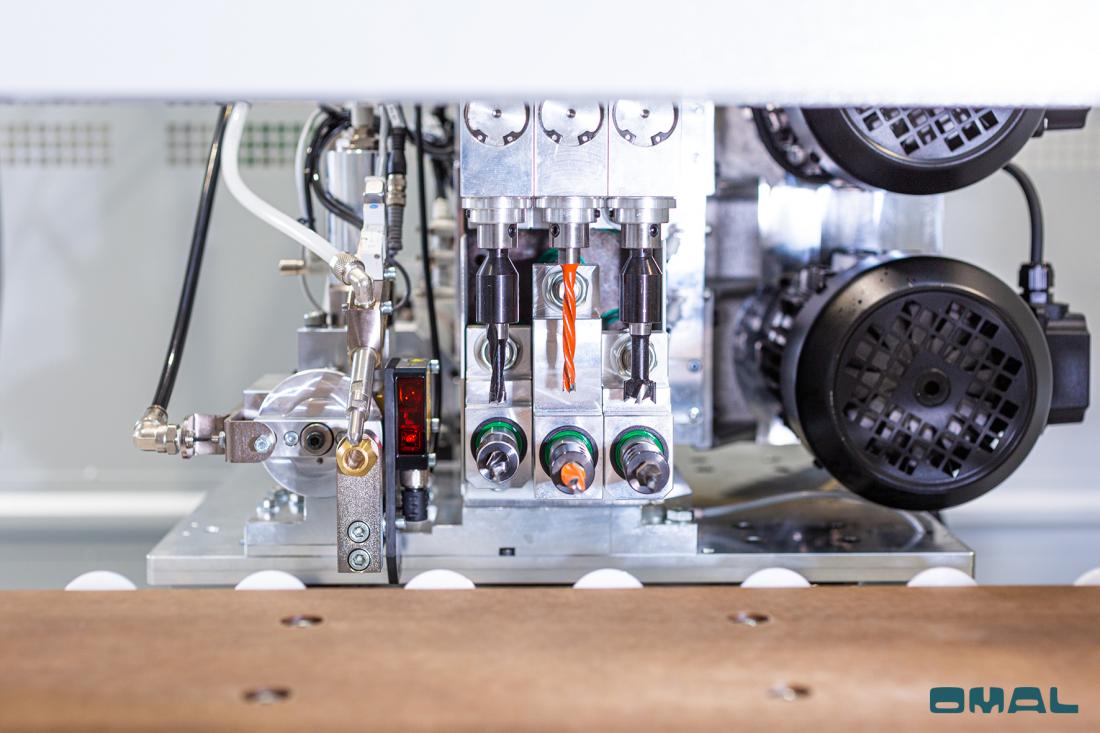

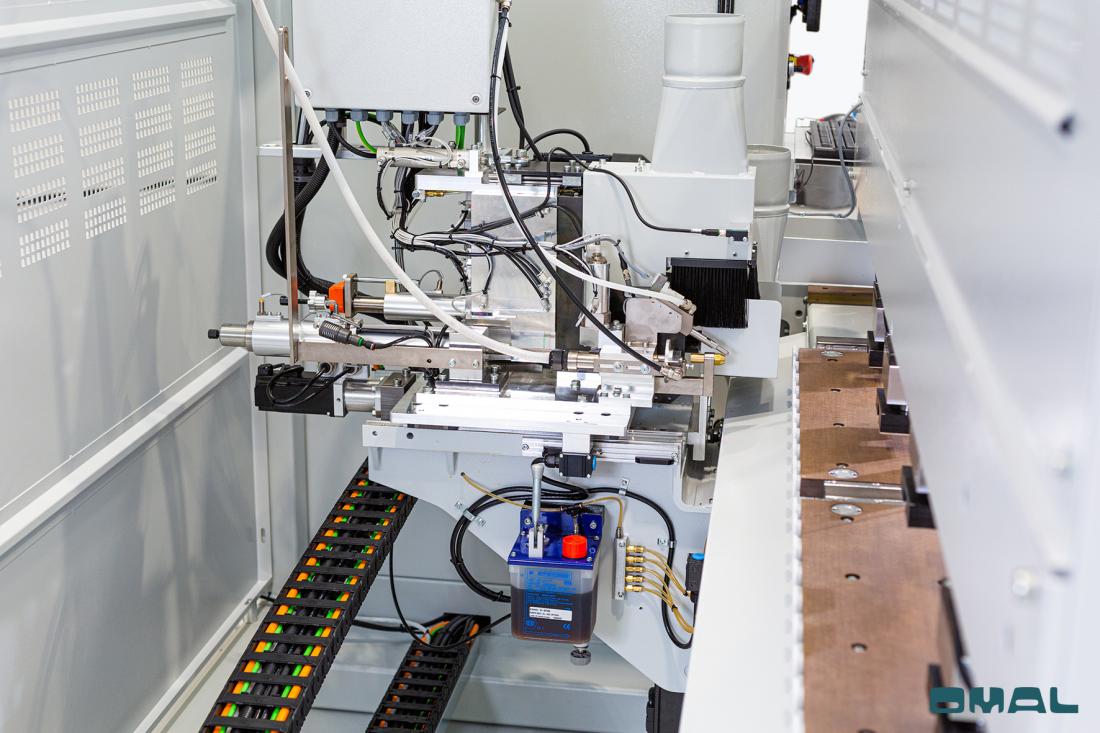

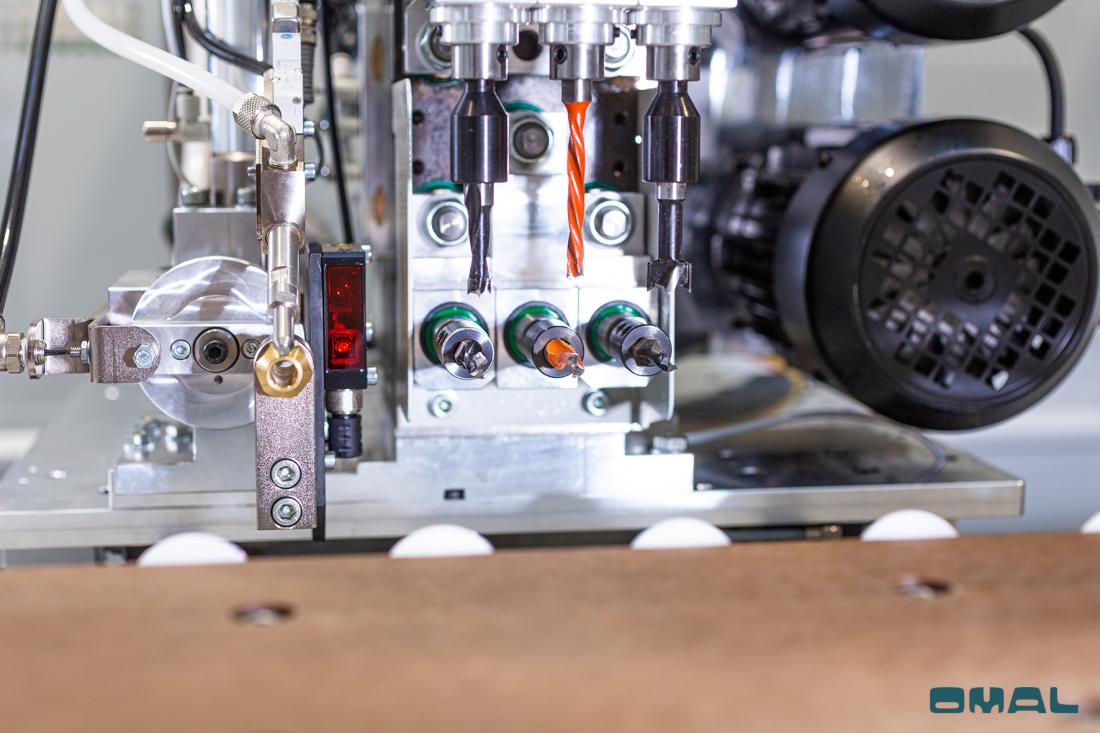

- Three vertical plus, three horizontal drilling units, glue and dowel insertion. Option of five vertical and five horizontal spindles;

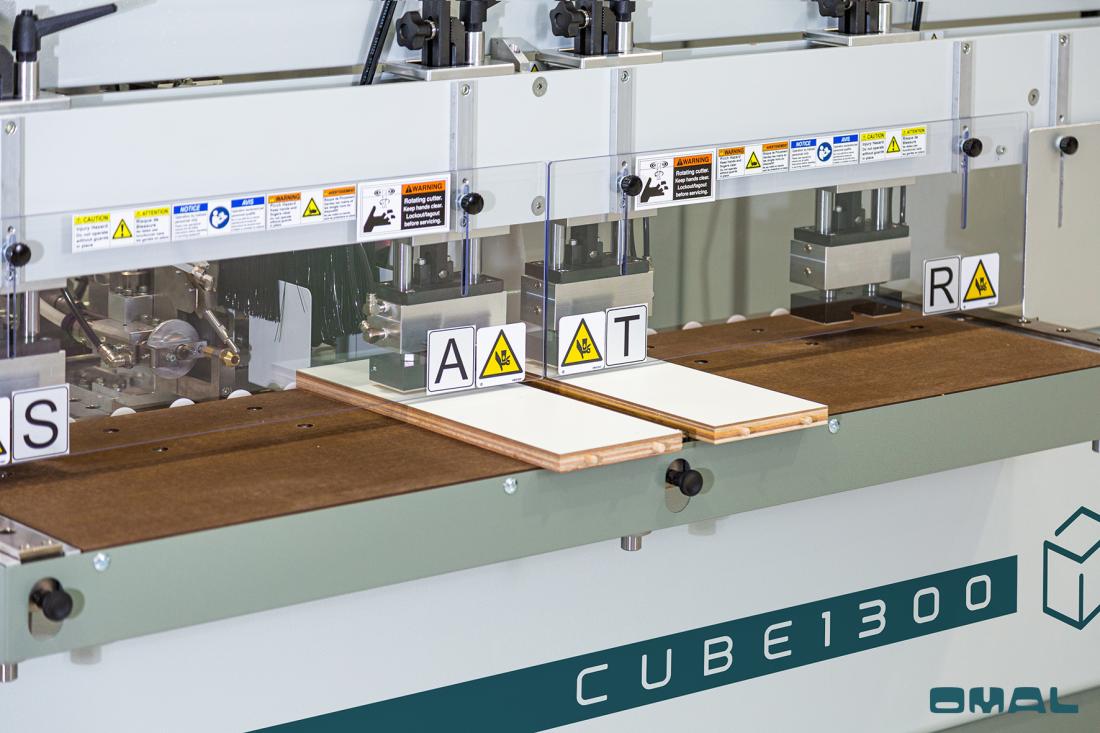

- 1300 or 2500 mm work table with four fields;
- indexable central and side fences (possible to process 2600 mm panels on Cube1300);

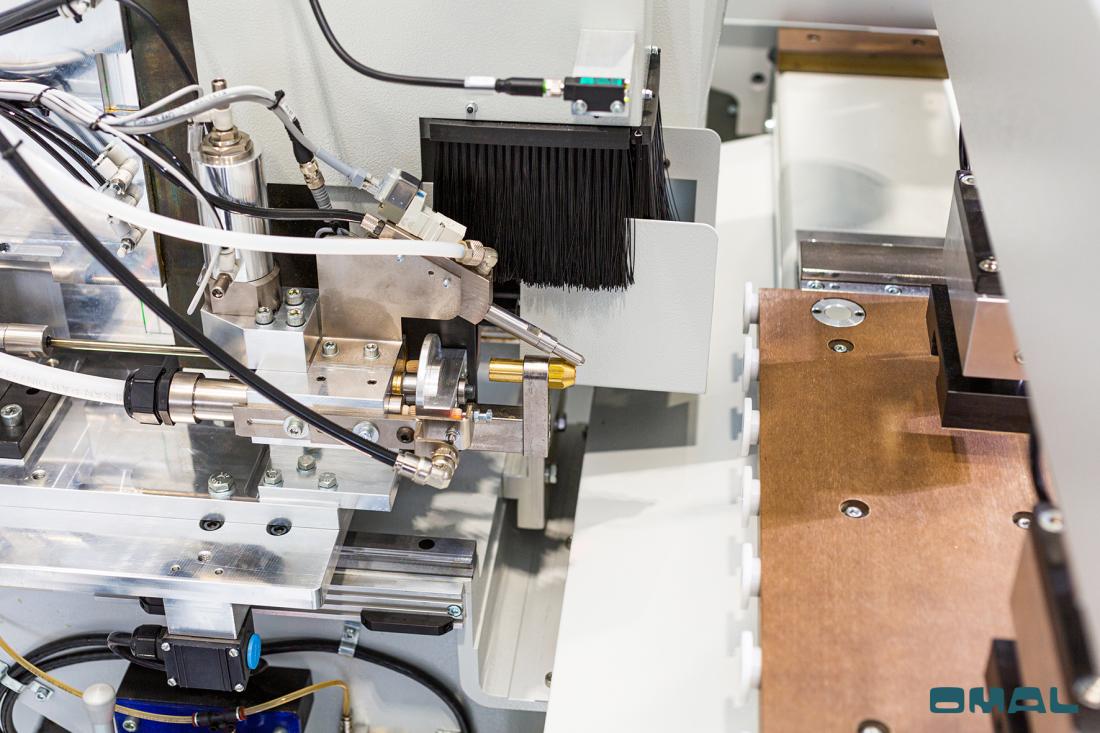

- SURE SHOT revolver system to guarantee the fastest cycle time (average one second) and extreme reliability laser for measuring the part and populate the program;

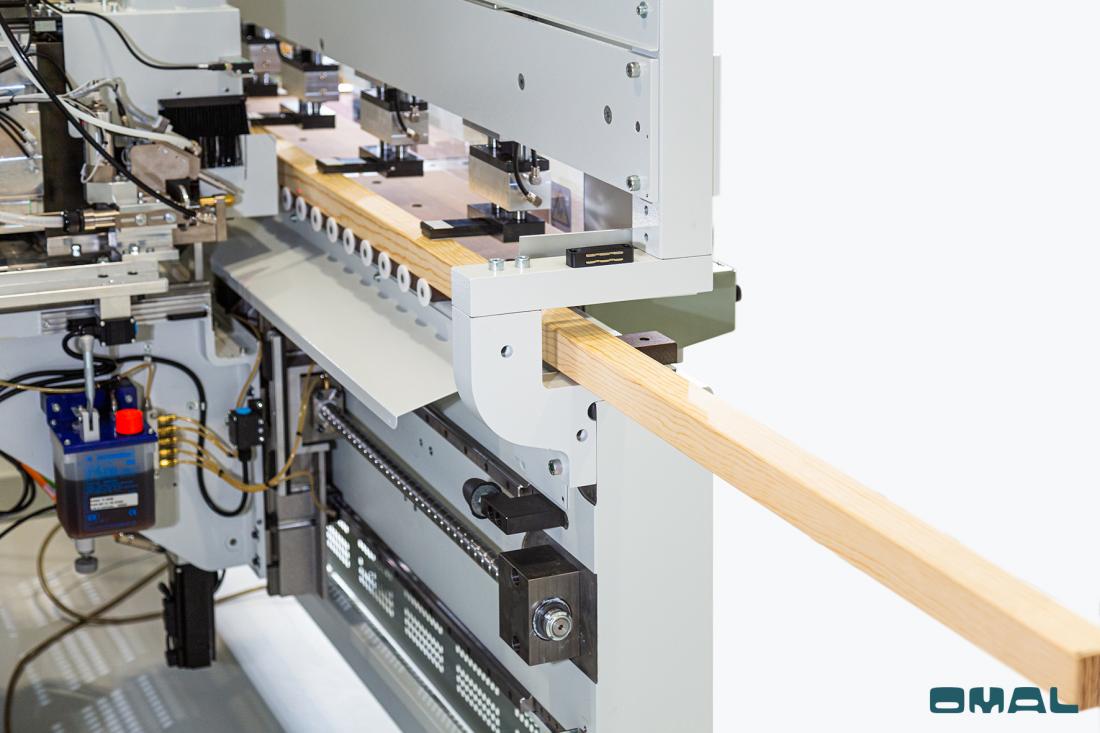

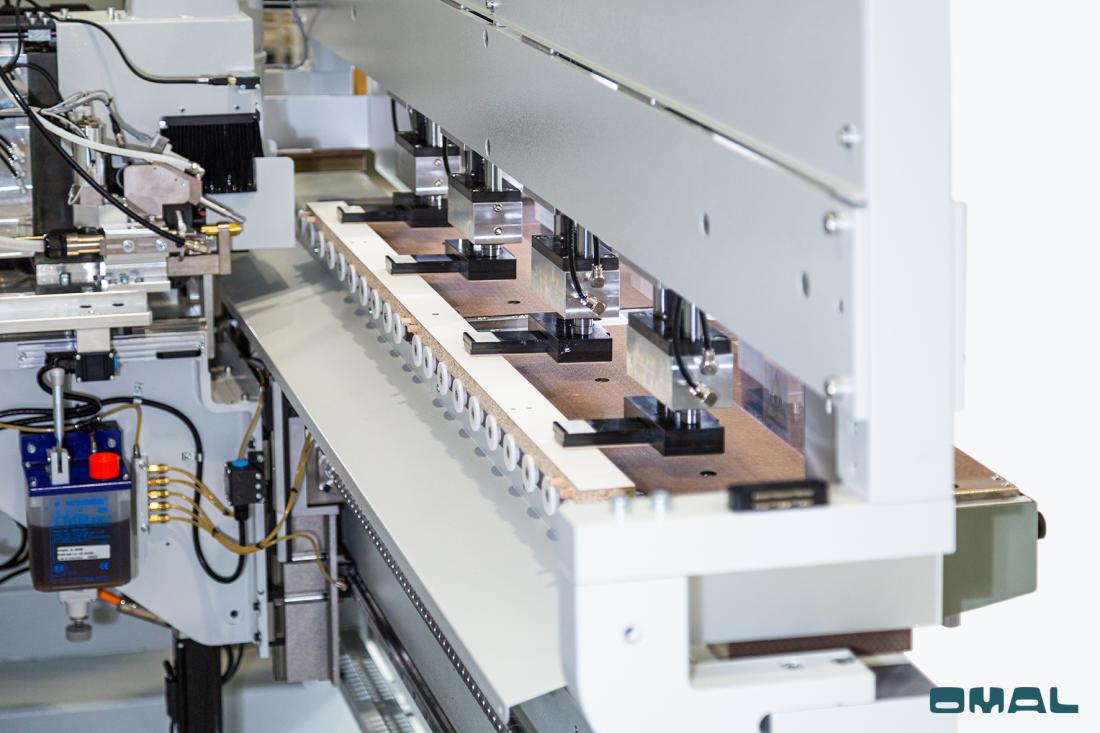

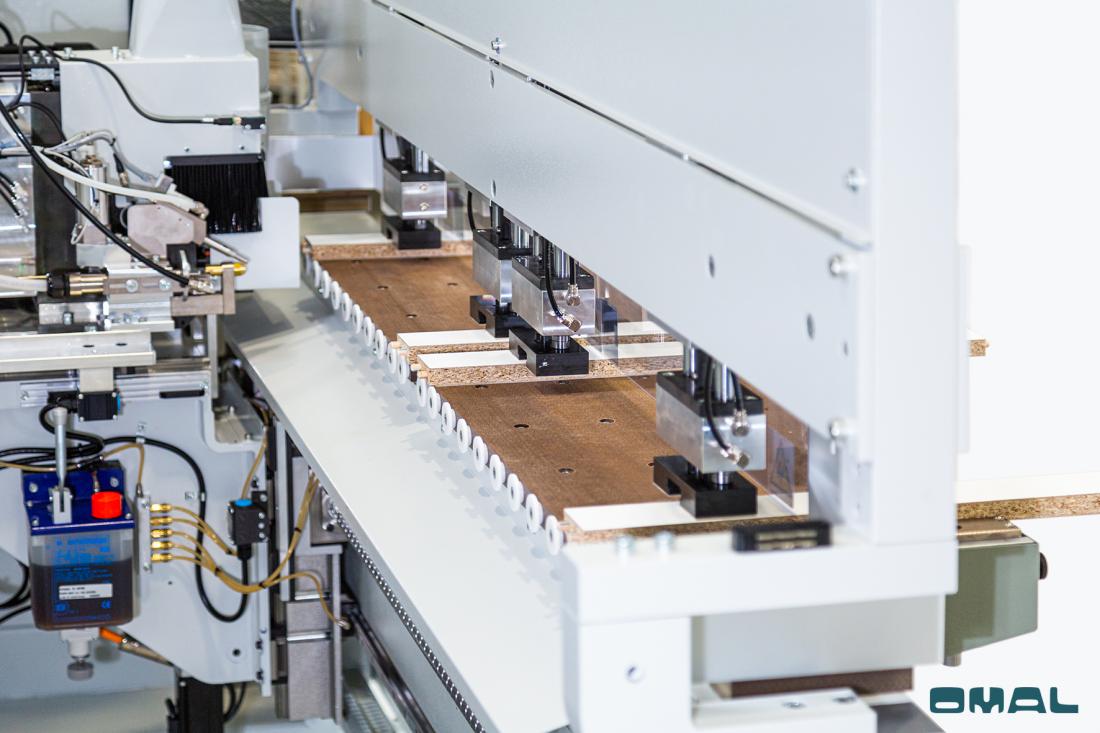

- heavy duty double piston clamps with Omal ‘easy positioning’ system clamps extension for narrow pieces and unique Omal anti-collision laser;
- autostart (option);
- highly efficient dust extraction

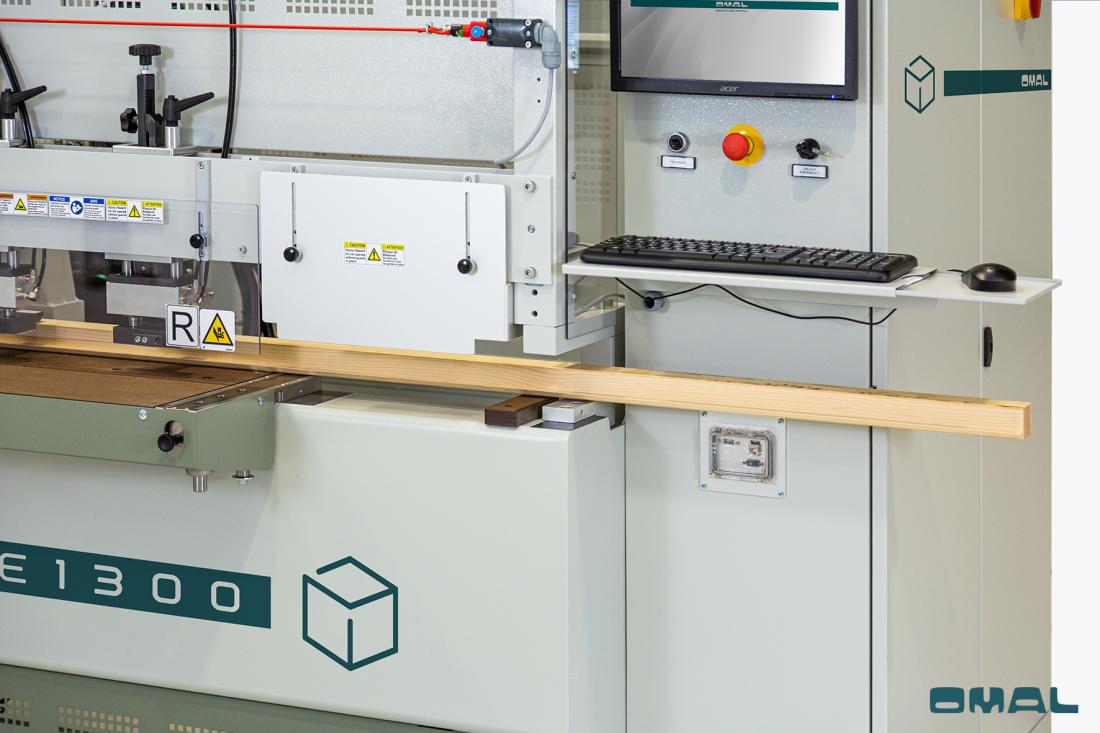

- powerful and user friendly Pc based Numerical Control;
- heavy duty steel frame for maximum rigidity;
- auto-start (option);

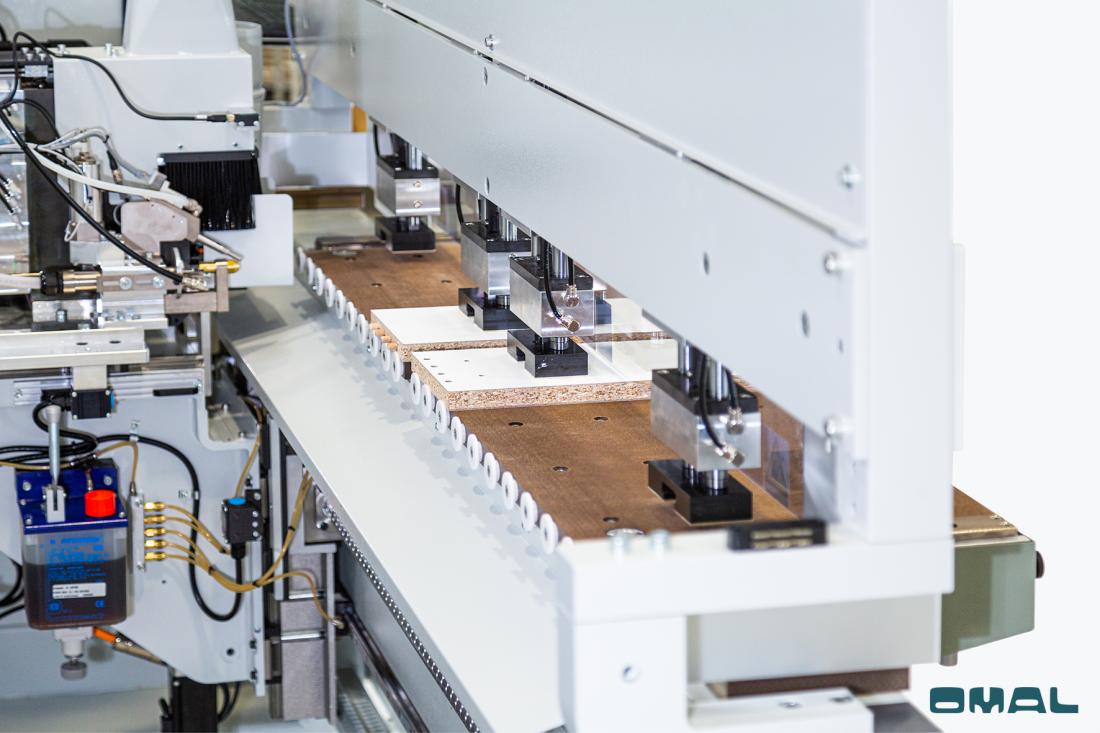

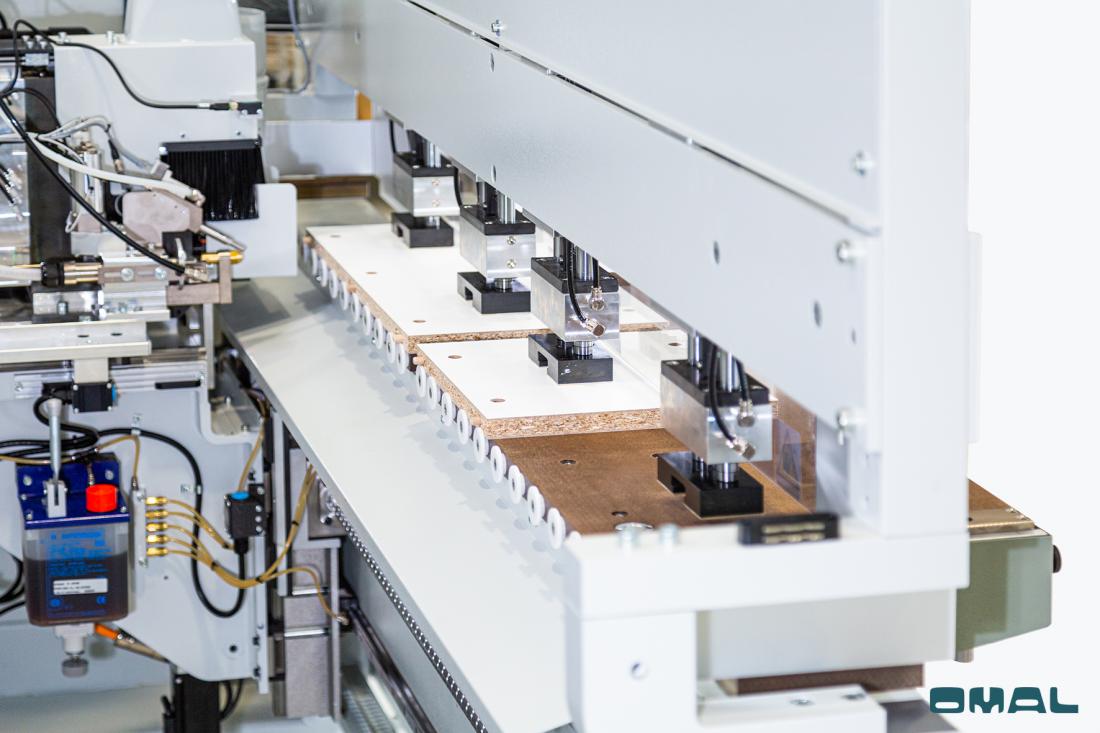

- large phenolic table with heavy duty clamps suitable also for delicate materials;
- barcoding and network ready
- option Omal Spotlight to position clamps, show machine status, right part and field to be loaded
- Panel length 20 - 1300 / 2500 mm
- Panel width 40 - ∞
- Panel thickness 10-60 mm
- Installed power - 13 Kw
- Compressed air - min 7
- Dust extraction hood - 2x120 mm
- Total weight - 1600 / 2200 Kg
